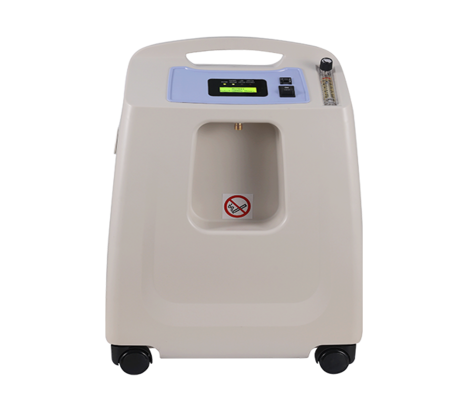

These models can produce average 93% purity oxygen to meet 5liter flow requirements of hospital, clinic, home use, nursing centre. It can stably work in 24 hours a day, always maintain oxygen purity at average 93% at 5L/min flow. And in future, it only needs few maintenance of the main machine among its whole lifetime. Users do not need to open the machine body to do replacement of filters; this is also one of the best selling points in Dynmed products
Features:
>>24 hours work continuously
>>Four alarm systems: low oxygen concentration alarm, power off alarm, pressure circulation fault alarm and compressor fault alarm
>> AVG oxygen purity: 93%±3%
>> Low sound level: less than 45dB (A)
>> Net weight: only 15.9kg
>> Strong ABS shell, fashion design.
|
Technical data |
|
|
Oxygen flow |
1~5 LPM |
|
Output pressure |
58.6 kPa |
|
Power supply |
AC 220V±22V, 50Hz±1Hz |
|
Input power |
320VA (AVER) |
|
Oxygen concentration |
1~5 LPM 93%±3% |
|
Operation Environment |
Temperature 5°C ~40°C Humidity≤80% Atmospheric pressure:86kPa~106 kPa |
|
OCSI indicator (Option) |
85% above green; 85%below yellow; 82% below red |
|
N.W. |
15.9kg |
|
Noise |
<45dB(A) |
|
Size |
32cm×43cmx62 cm(L×W×H ) |
|
Operation regular |
Time cycle/pressure rotation |
|
Transportation/storage condition |
Temperature-20°C ~55°C Humidity≤90% Atmospheric pressure:86kPa~106 kPa |
|
Equipment class&Type |
Class II B |
